LB7 DURAMAX S400 SINGLE TURBO INSTALL KIT - WCFAB
We often times have Gloss black on hand and ready to ship.

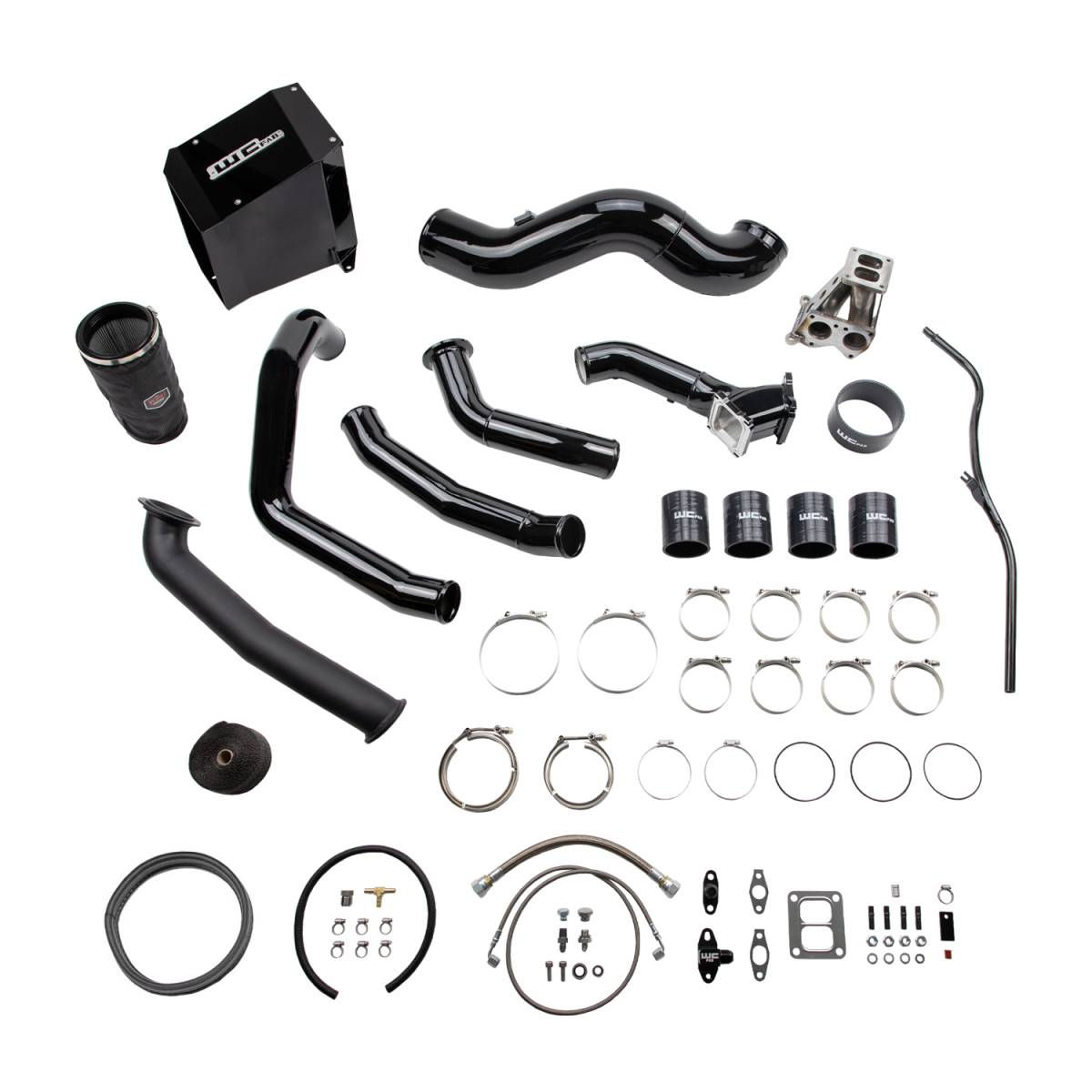

-NEW! Now includes 5" Intake with Fabricated Air Box & Lid Constructed of 10G Aluminum Sheet
-14G Mandrel Bent Aluminum Piping
-Premium Dry Media Air Filter
-Outerwear's Pre-Filter Cover
-T4 Pedestal & Spacer with Hardware
-Stainless Steel Oil Feed and Drain Lines with Fittings
-3" Fabricated High Flow Y-Bridge
-3" 2-Piece Hot Side Intercooler Pipe with V-Band Connection at Turbo Compressor Outlet
-3" Cold Side Intercooler Pipe
-3" Down Pipe with High Temp Ceramic Coating (Mates to exhaust system flange)
-Driver Side Trans Dipstick Relocation Tube
-Silicone Boots & Stainless Steel T-Bolt Clamps
-V-Band Clamps
-Heat wrap
-Custom Powder Coat Finish
-Made in USA
This kit will allow you to install an S400 based Turbo on your LB7 Duramax. Replacing all of the OEM plumbing and y-bridge with high flow 3" diameter piping. Oil Lines are high quality stainless steel braided Parker Lines with the oil feed line routing from the main oil galley on the side of the engine block. We designed our down pipe to connect with your exhaust system V-Band and clamp which simplifies installation and does not require you to cut your exhaust system.
If you are not purchasing the turbo from us you must specify the brand of turbo you are using, some Turbo's you may be required to ship to use for mock up to build the kit.
Includes Driver Side Transmission Dipstick Tube which makes installation of the down pipe easier.
NOTE: Turbo Downpipe is designed for Half Marmon style S400 exhaust outlet, which measures 4.6" Diameter flat flange. NOT compatible with HX40 style exhaust outlet flanges.
***Forward Facing Thermostat Required: The OEM turbo coolant feed port on the upper radiator pipe from the thermostat housing will interfere with the larger WCFAB Turbo Intake in this Kit. Billet Coolant Port Block Off Plugs DO NOT allow enough room for clearance on LB7 Models. You MUST use a WCFAB Billet forward-facing thermostat housing Kit together with this kit to complete the installation. *** FOUND HERE
Don't see the color you want? Let us know and we will add it for you!
